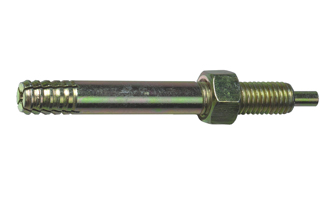

Pin Type anchor bolt

Hit Type Anchor or
Hammer Driven Anchor

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

Fasteners Products

Pin Type anchor bolt

Hit Type Anchor or Hammer Driven Anchor

Hammer driven pin type anchor for push-through installation.

The shell of an anchor is driven into the hole without the expansion pin.

Then the expansion pin is driven into the shell which after being hit expands the shell against the concrete.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

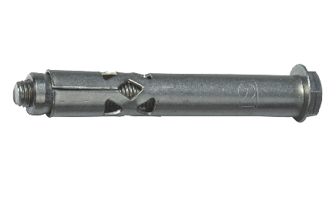

Double Ring

Double Ring anchor for push-through and pre-positioned installation.

When the hexagon nut is tightened, the tapered bolt is pulled into the expansion clip and expands it against the hole wall.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

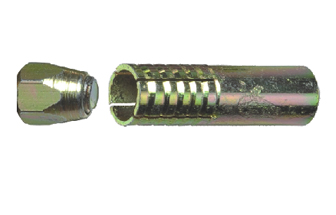

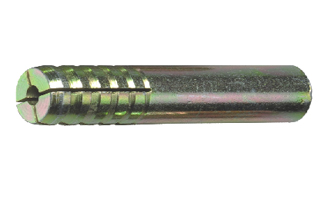

Bullet type anchor

Drop-in-Anchor

Bullet type anchor shell with internal thread for pre-positioned installation.

When the bullet is placed in shell & hit with a setting tools it slides forward & the inside part of shell expands and takes the grip in the wall.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Sleeve and Taper Nut

KI Taper Nut Sleeve anchor with internal threaded taper nuts for the lowest anchorage depth.

When the nut on the stud is tightened, the tapered nut on the other end is pulled into the sleeve which on expanding takes the grip in the wall.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

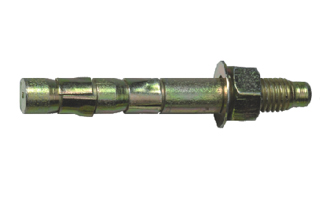

Single ring

Through Bolt Type

Anchor Bolt for push through installation.

The fasteners is hammered into the drilled hole up to the anchors length (minus the height of nut.)

When the nut is tightened, the tapered bolt is pulled into the safety wedge clip and expands it. The safety wedge clip is very reliable for anchoring and expands & takes grip in the wall.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

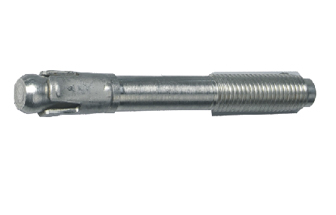

Sleeve anchor

Sleeve Anchor for push through installation.

For these anchor cylindrical conical hole is made with an uncut drill bit.

The Sleeve is driven or pushed over the cone shaped bolt with a setting tool which takes the grip in the concrete

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

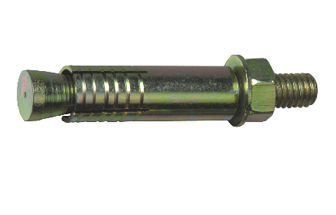

Wrap sleeve anchor

Wrap Sleeve Anchor (of various designs) for push through installation.

The tapered part of the fasteners is inserted in the wall and when the hexagonal nut or bolt is tightened the tapered bolt or nut is pulled into the sleeve, it expands & takes grip in the concrete.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)

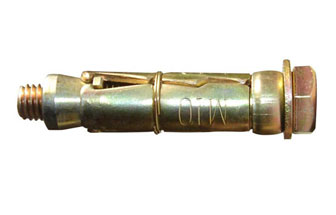

Heavy Duty Shield Anchor

3 Piece Anchors – also known as Rawal Bolts.

Cone side is inserted in the drilled hole & when the hexagonal bolt or nut is tightened the three strips held with spring slips on the tapered nut or projection bolts & takes the grip in the concrete.

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Other associated products

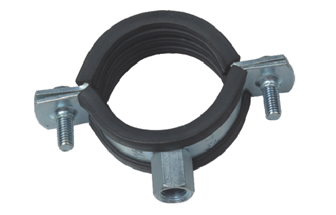

Universal Clamp

Self drilling screws

Dry wall screws

NYLON PLUG

Plastic Washer

Plastic CAP

Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Product Name :: Fasteners India (Example: Pin Type Anchor Bolt :: Fasteners India)
Application

Hit Type Anchor or Hammer Driven Anchor

Hammer driven pin type anchor for push-through installation.

The shell of an anchor is driven into the hole without the expansion pin.

Then the expansion pin is driven into the shell which after being hit expands the shell against the concrete.
